WebEx Education Connector is a Learning Tool Integration (LTI) available inside of Brightspace. The LTI enables Virtual Meetings and Office Hours using Webex from within the Brightspace platform.



Setting up the Webex Education Connector in a Course

Create the Webex External tool in a course content area module.

  1. Go to the Content area of a course, add a new content module
    • OR open a module in which the Webex link will be placed
  2. Select “Existing Activities” > “External Learning Tools”
  3. Select “Webex” from the LTI Link list
  4. Click the Webex link and select “Sign in with Webex Meetings”
  5. Enter your NetID and Password and then click “Accept” when prompted

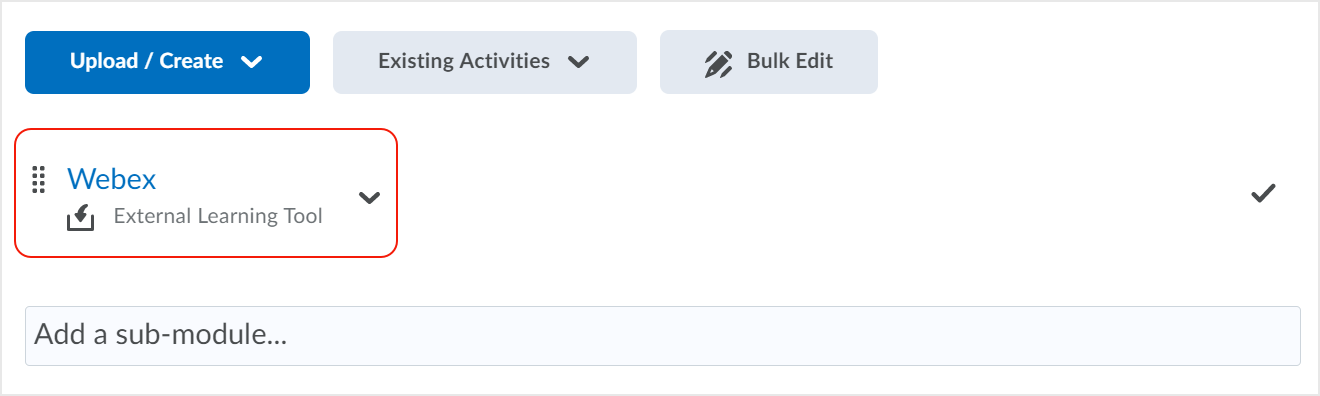

Brightspace screenshot - CD 20_20_10 - Webex link displays in content module

Return to the Webex External tool Education Connector in the content area.

  1. Click the “Setup” tab at the top of the content area.
  2. Under “Choose your features” select checkbox(es) next to Virtual Meetings and/or Office Hours.
    • Virtual Meetings: Schedule a recurring or one-time meeting with others in your course
    • Office Hours: Select times where your students can schedule to meet with you through Webex
  3. After selecting the option(s), select "Apply" button.
    • a "Success - Features updated successfully" alert will pop
  4. Select "Authorize with LMS" if this has not already taken place.
    • in the graphic below, the authorization has already occurred

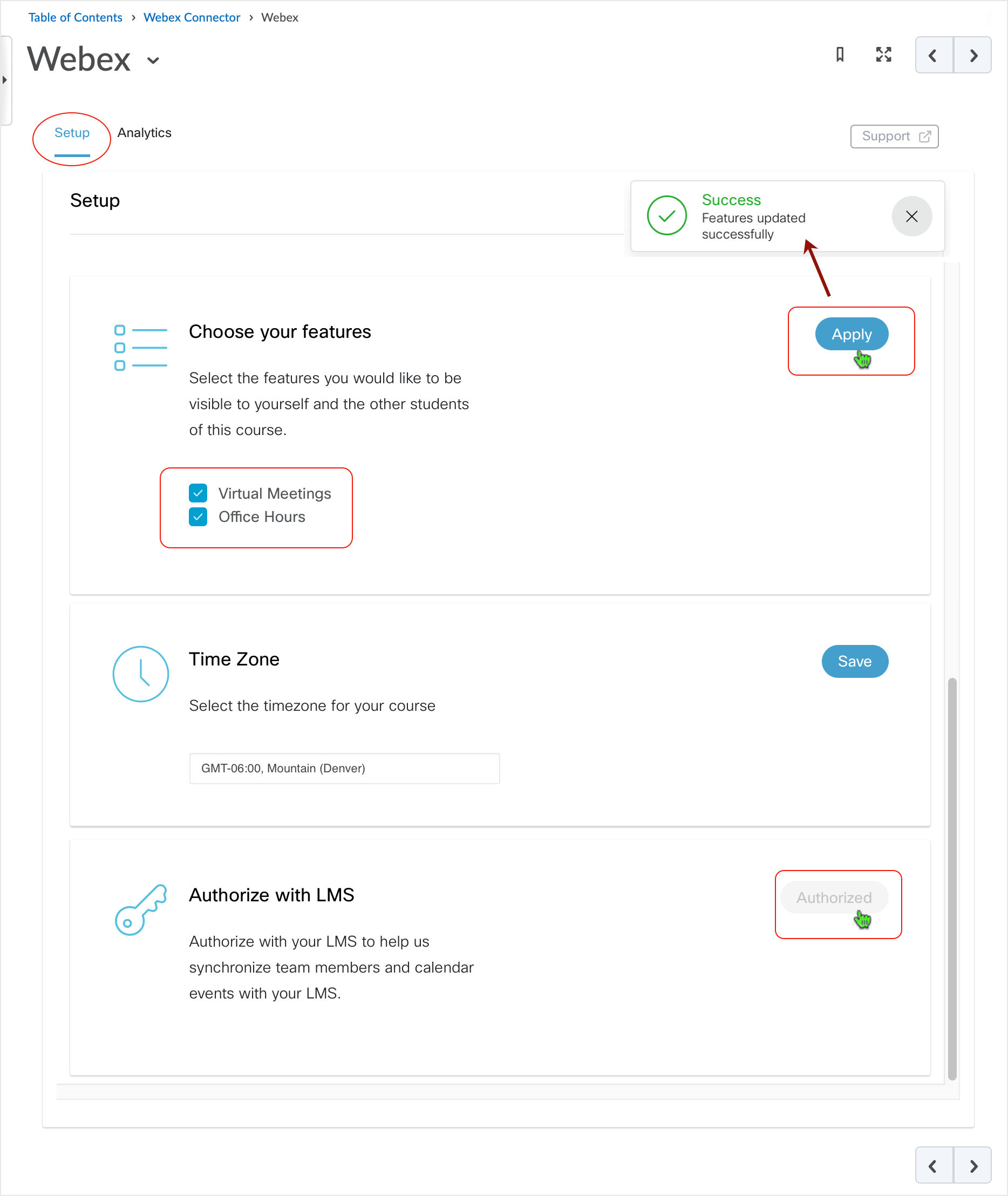

Brightspace screenshot - CD 20_20_10 - setup page of Webex Education Connector



After "Virtual Meetings" and/or "Office Hours" have been enabled, selecting the Webex link reveals the available options.

  1. In this example, Virtual Meetings, Office Hours, Setup, and Analytics titles display.
    • selecting a title makes it active and is identified by virtue of the title appearing with blue letters with a blue bar underline

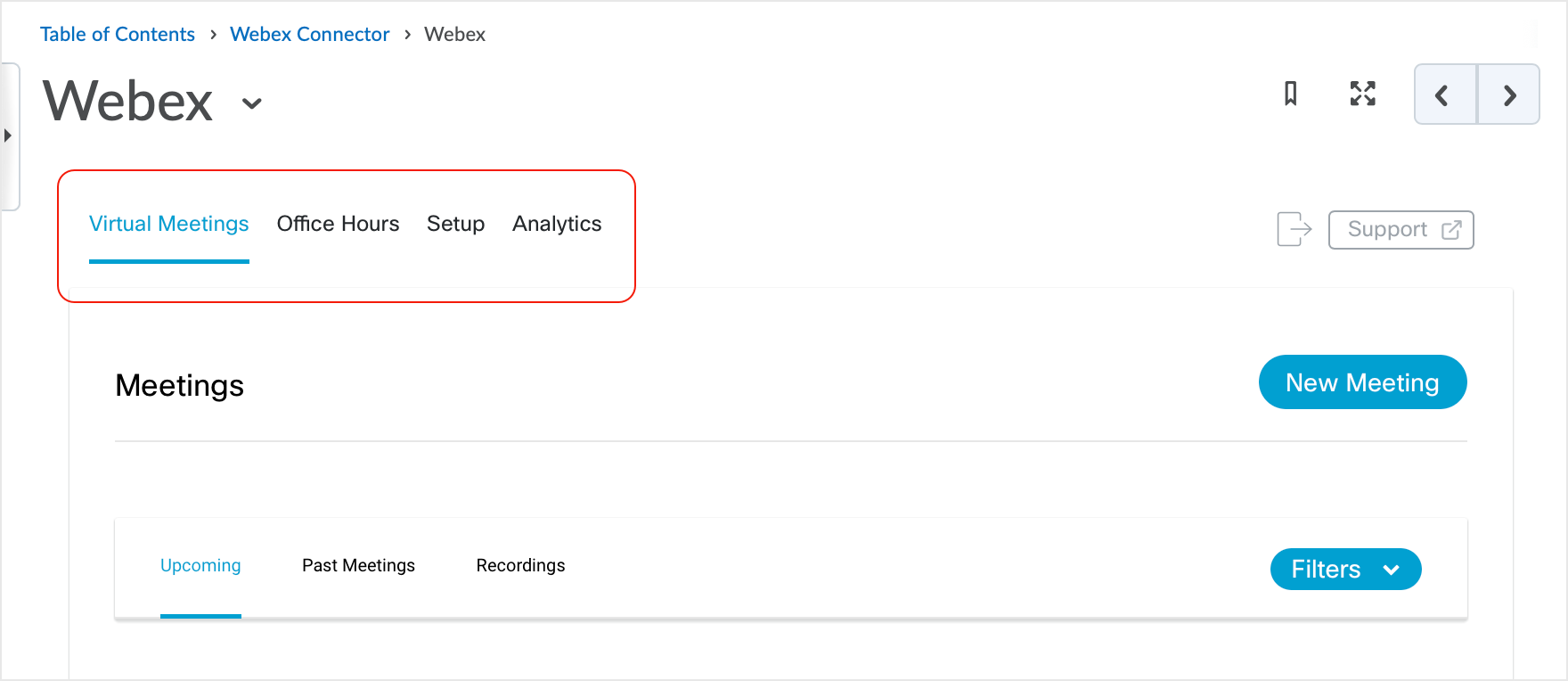

Brightspace screenshot - CD 20_20_10 Webex Education Connector module page displays

back to top

Schedule a Virtual Meeting

Schedule Virtual Meetings to meet with others via Webex.

Click the Webex link in your content area to access the education connector and under the “Virtual Meetings” tab, select the “New Meeting” button.

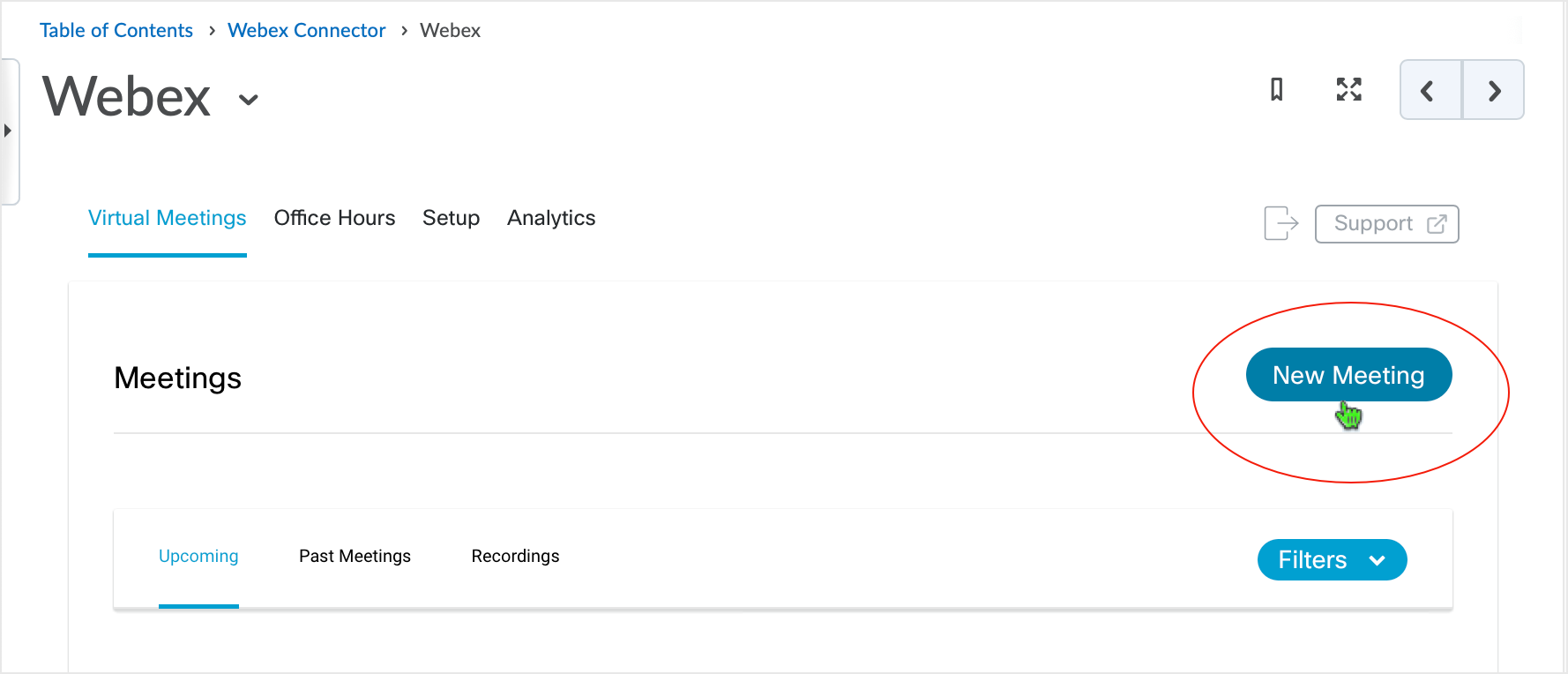

Brightspace screenshot - CD 20_20_10 - select the "New Meeting" button



Give the meeting a name, select a session type (Meeting, Training or Event),  and select a meeting date, duration and recurrence.

Once your details are set-up, select the “Create Meeting” button.

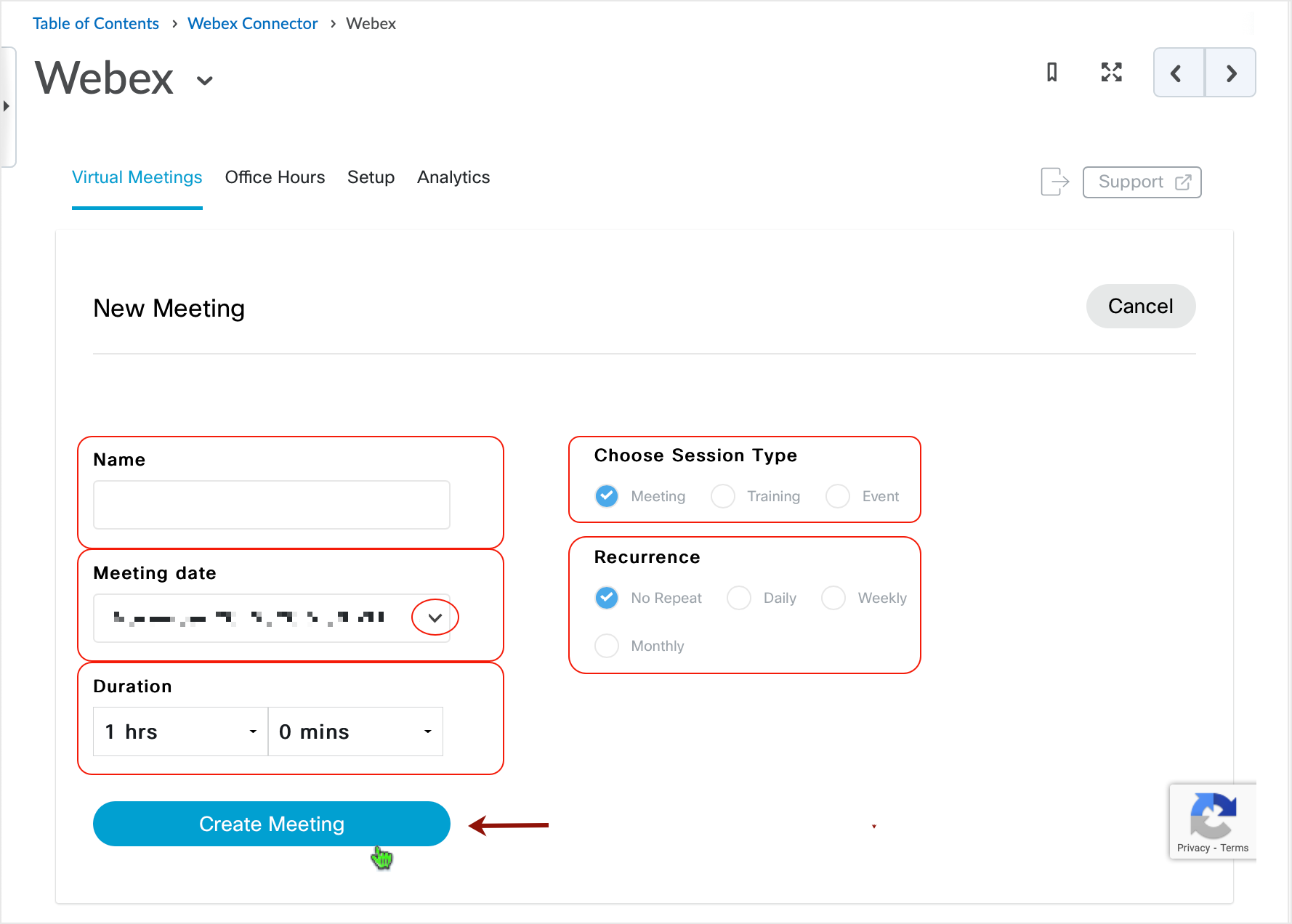

Brightspace screenshot - CD 20_20_10 - set up meeting parameters and select "Create Meeting" button



After a meeting is created, it will show up in the "Upcoming" tab. Users can view, start, edit, or delete their own created meeting as necessary.

"Past Meetings" and "Recordings" tabs are also available for use.

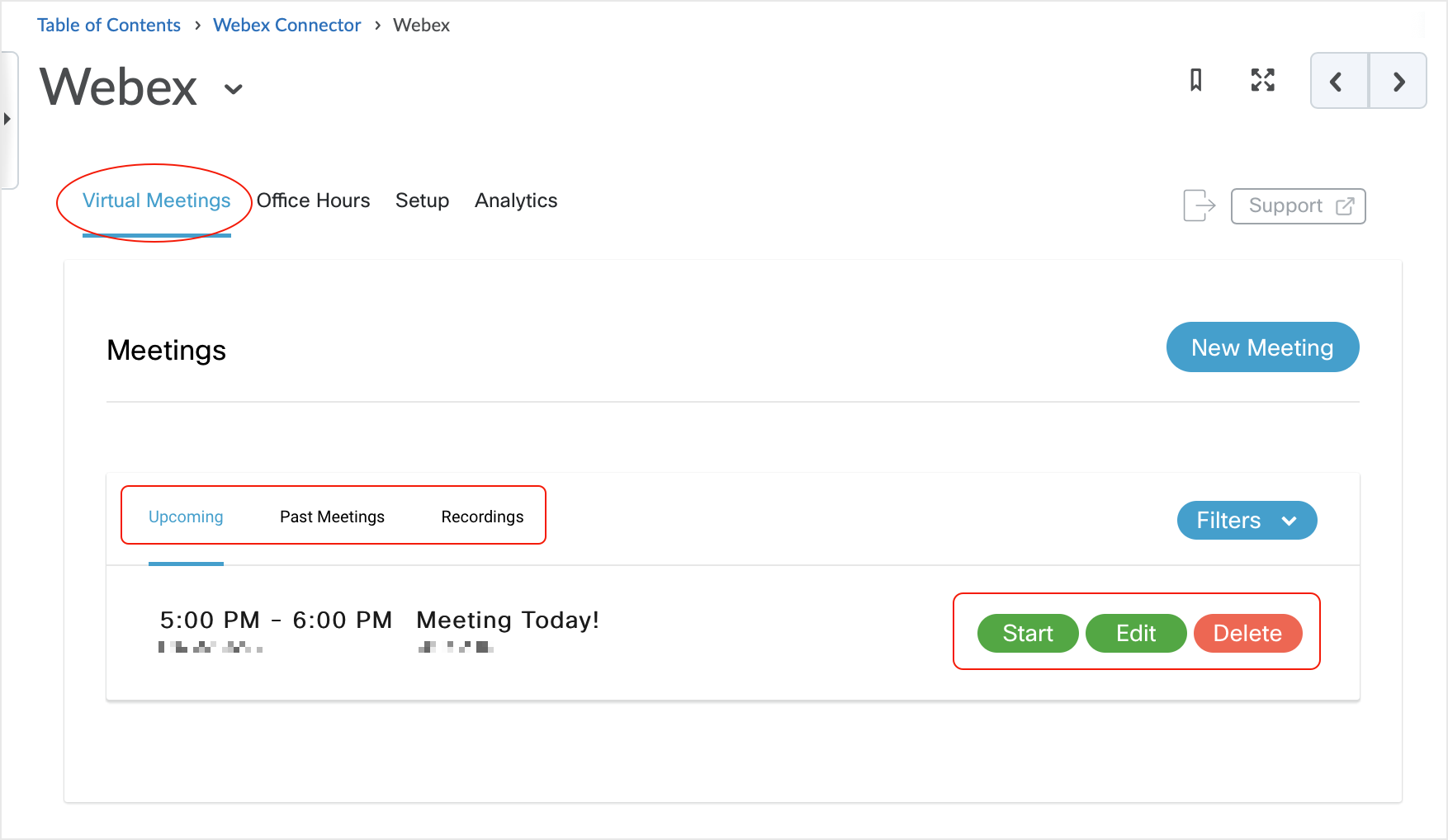

Brightspace screenshot - CD 20_20_10 shows scheduled meeting display



After you have hosted a meeting, it will show up under the “Past Meetings” tab. If you select the icon under “Action” in past meetings, it will allow you to see who participated in the call.

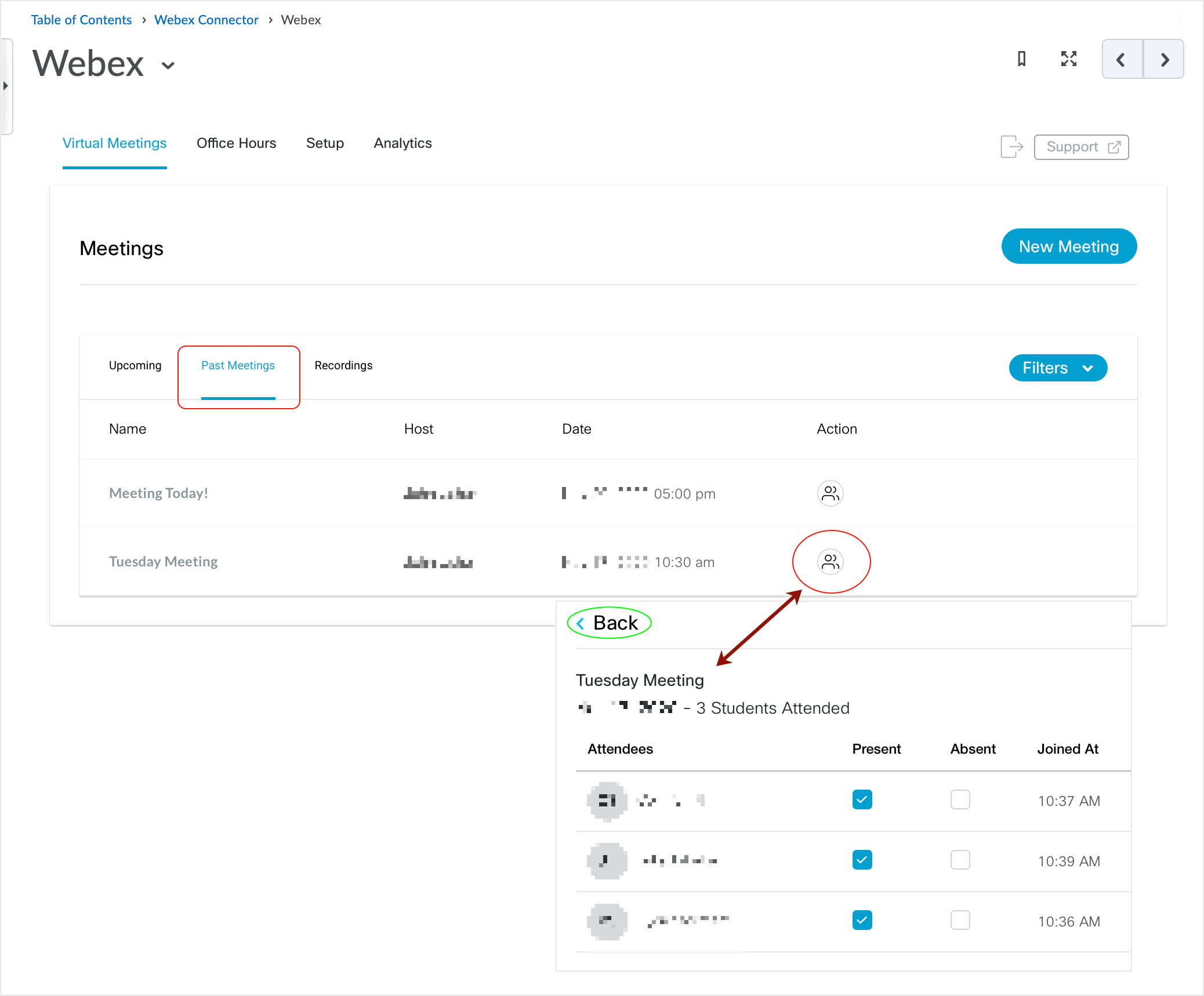

Brightspace screenshot - CD 20_20_10 shows "Past Meetings" tab with cut-out of meeting attendance example

Recorded meetings can be viewed under the “Recordings” tab by both instructors and students.

back to top

Schedule Office Hours

Schedule Office Hours for interaction online via Webex with learners.

Click the Webex link in your content area and select the “Office Hours” tab.

  • Under “Availability” select the “Meeting duration” drop down menu to choose a scheduling increment (15, 30, 45 or 60 minute increments).
  • Under “Block Off Extra Time” select the “Appointment buffer” drop down menu and select the appropriate amount of time.
    • An appointment buffer is there in case meetings run over or you need breaks between meetings.
  • Select the timeslots under each day of the week that you want to host office hours.
    • The selected blocks of time will be highlighted.
  • Select the "View My Meetings in Webex" button to access the related Webex account to see information related to meetings that have been scheduled.



Brightspace screenshot - CD 20_20_10 - shows Office Hours tab of the system with descriptive breakouts of available adjustment options

back to top

Links will open in a new tab or window dependent on browser/OS configuration.

What dialog boxes look like and how dialog boxes and browsers interact is dependent upon the operating system and browser being used. The screenshots in this tutorial may differ from the screen that the user is viewing when performing actions described.
